Kona Libre EL
Details
The Libre EL has made itself known as a go-to adventure bike for people of all abilities. Looking to up your distance? Want a tool that allows you to ride farther in less time? The Libre EL is a versatile machine that has the legs to go just about anywhere. Built on our wildly popular Libre platform, the Libre EL features an aluminum frame and Verso Full Carbon Flat Mount Disc fork. Like its CR DL sibling, it runs a gravel-specific drivetrain and brakes, ensuring the grime that you'll inevitably get from a mucky ride doesn't affect shifting and braking performance. Unlike its analog sibling it gets a power boost from a Shimano motor and internal battery. In other words, it'll get you to the top of that insanely steep mountain you've been eyeing up, and let you enjoy the benefits of rippin' gravel on the way down!
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.
TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.
650b WHEELS
650b wheels and tires have a similar overall diameter to a traditional 700c gravel or commuting tire, but with a smaller diameter rim and a wider, taller tire. The extra air volume in this new generation of urban and mixed-surface tires means they can be run comfortably at lower pressures while still rolling quickly on a variety of surfaces. It's the best of both worlds.

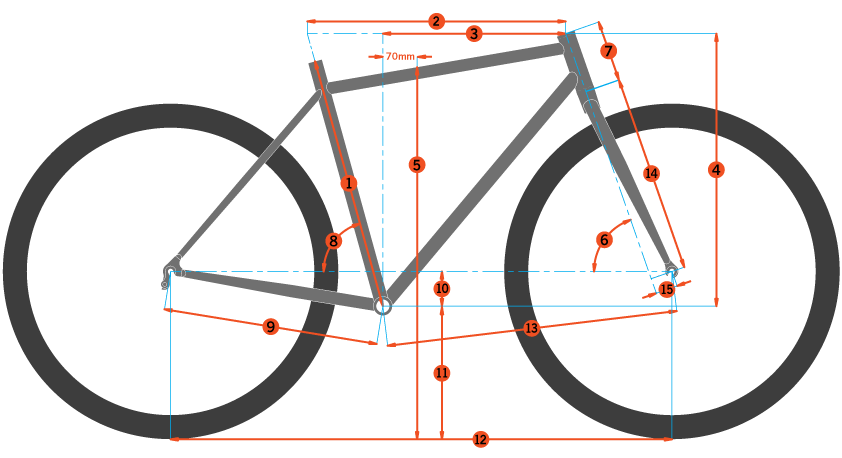

Frame Size | 50cm | 52cm | 54cm | 56cm | 58cm |
---|---|---|---|---|---|
Seat Tube Length (mm) | 455 | 490 | 510 | 540 | 550 |
Top Tube Length (mm) | 543 | 558 | 573 | 588 | 608 |
Reach (mm) | 378 | 383 | 386 | 389 | 394 |
Stack (mm) | 575 | 590 | 610 | 630 | 660 |
Standover (mm) | 721 | 749 | 772 | 799 | 818 |
Head Tube Angle | 70.5 | 70.5 | 71 | 71 | 71 |
Head Tube Length (mm) | 137 | 153 | 175 | 196.5 | 230 |
Seat Tube Angle | 74 | 73.5 | 73 | 72.5 | 72 |
Chainstay Length (mm) | 440 | 440 | 440 | 440 | 440 |
Bottom Bracket Drop (mm) | 75 | 75 | 72 | 72 | 70 |
Bottom Bracket Height (mm) | 268 | 268 | 271 | 271 | 273 |
Wheelbase (mm) | 1042 | 1052 | 1058 | 1068 | 1084 |
Front Center (mm) | 613 | 623 | 628 | 638 | 654 |
Fork Length (mm) | 410 | 410 | 410 | 410 | 410 |
Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 |
Frame Size | Height (inches) | Height (cm) | Inseam (inches) | Inseam (cm) |
---|---|---|---|---|
50cm | 4'10"-5'1" | 147-155cm | 24"-27" | 61-69cm |
50cm | 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm |
50-52cm | 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm |
52-54cm | 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm |
54-56cm | 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm |
54-58cm | 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm |
58cm | 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Kona 6061 Aluminum Butted |
---|---|
Fork | Kona Verso Full Carbon Flat Mount Disc |
Rims | WTB HTZ i25 TCS 2.0 |
Hubs |
Front: Formula 100x12mm Rear: Formula 142x12mm |
Spokes | Stainless 14g |
Tires |
Front: WTB Venture TCS w/Puncture Protection 650x47c Rear: WTB Venture TCS w/Puncture Protection 650x47c |
Crankset | Shimano E8000 |
Chainrings | Direct Mount Samox 38t |
Shifters | Shimano GRX 810 |
Rear Derailleur | Shimano GRX |
Cassette/Freewheel | Shimano Deore 11-42t 11spd |
Chain | Shimano 105 |
Brakes | Shimano GRX 810 |
Rotors | Shimano RT66 160mm |
Brake Levers | Shimano GRX 810 |
Handlebars | Kona Road |
Tape/Grips | Kona Cork Tape |
Stem | Kona Road Deluxe |
Headset | Orbit 1.5 ZS, No.57-T |
Seatpost | TranzX Dropper +RAD Internal w/Shimano Lever 31.6mm |
Saddle | WTB Volt |
Pedals | Sold separately |
Motor | Shimano E7000 20MPH |
Battery | Shimano 504Wh |
Controller/Display | Shimano SC-E7000 Display |
Charger | Shimano STEPS 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Metallic Pewter / 56cm | 841073144860 | B22ELB56 | 210000007859 |
