Giant FastRoad AR 2

Giant FastRoad AR 2
  • Color: Metallic Black
$1,000.00
Color: Metallic Black
Size: Large
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

Imagine a quick and agile road bike but with greater versatility. With flat handlebar positioning, smooth compliance and wide tubeless tires, FastRoad AR frees you up to ride paved roads, bumpy bike paths and everything in between.

KEY PERFORMANCE FACTORS

Lightweight efficiency
High-quality ALUXX aluminum frame and composite fork deliver efficient pedaling power for a smooth, fast ride on variable roads and paths.

Smooth, stable ride quality
Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.

All-road capabilities
With clearance for high-volume tubeless tires (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double-chainring setups are available on different models to suit individual riding style and terrain.

HIGHLIGHTS:
A lightweight, strong and durable ALUXX aluminum frame is designed specifically for a flat handlebar to put the rider in a more stable upright position compared to drop bars. The composite fork minimizes weight and helps absorb road shocks and vibrations. Dropped seatstays and a D-Fuse composite seatpost add compliance in the rear, and ergo grips keep your hands comfortable on longer rides. High-volume 40mm tubeless tires and powerful disc brakes give you added control in all types of weather. Integrated rack mounts make it a smart choice for commuting, fitness riding and weekend adventures.

ALUXX ALUMINUM
- Frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

OVERDRIVE
- Giant's proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

FLAT-BAR GEOMETRY
- Frame geometry is specifically engineered for a dynamic feel that blends stable flat-bar positioning with speed and road acceleration.

D-FUSE SEATPOST
- Proprietary "D" shaped composite seatpost dampens vibrations, resulting in a smooth, compliant ride.

POWERCORE
- A massively oversized bottom-bracket/chainstay area features a threaded, BSA 68 bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

INTEGRATED MOUNTS
- Easy-to-use mounts on the frame and fork offer the option to add racks, fenders, and other accessories.

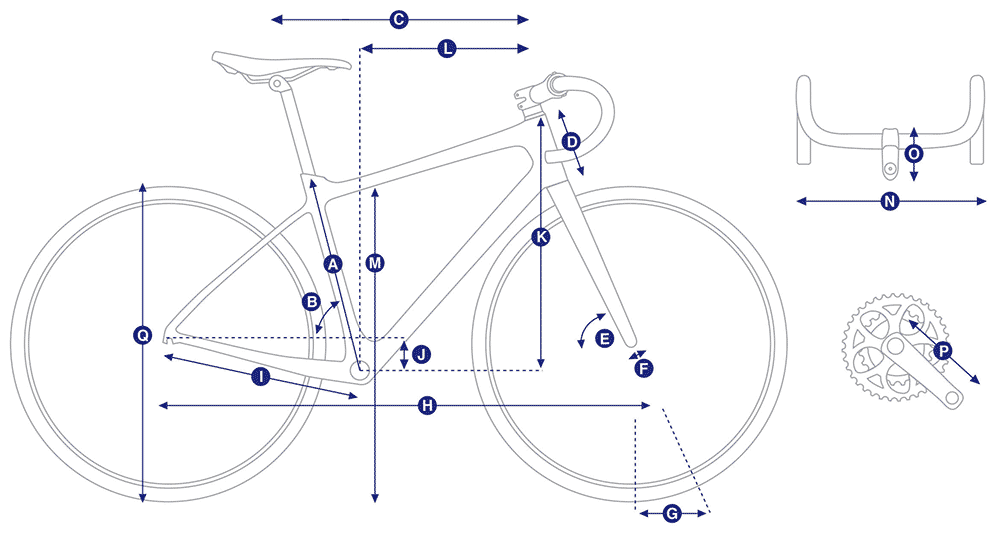

Geometry

Sizes:
X-SmallSmallMediumMedium/LargeLargeX-Large
A SEAT TUBE LENGTH (mm) 435 455 475 495 525 555
B SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 545 560 575 590 610 630
D HEAD TUBE LENGTH (mm) 110 130 155 175 200 225
E HEAD TUBE ANGLE 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F FORK RAKE (mm) 50 50 50 50 50 50
G TRAIL (mm) 74 74 70 70 67 67
H WHEELBASE (mm) 1031 1047 1058 1069 1084 1105
I CHAIN STAY LENGTH (mm) 435 435 435 435 435 435
J BOTTOM BRACKET DROP (mm) 75 75 75 75 75 75
K STACK (mm) 533 552 578 597 623 646
L REACH (mm) 387 396 404 407 419 432
M STAND OVER HEIGHT (mm) 718 736 756 773 800 826
N HANDLEBAR WIDTH (mm) 640 640 680 680 680 680
O STEM LENGTH (mm) 70 80 90 90 100 110
P CRANK LENGTH (mm) 170 170 170 172.5 172.5 172.5
Q WHEEL SIZE 700C 700C 700C 700C 700C 700C
Sizes:
X-Small5'1" - 5'5"
Small 5'3" - 5'7"
Medium 5'7" - 5'11"
Medium/Large 5'9" - 6'1"
Large 5'11" - 6'3"
X-Large 6'3" - 6'7"

Specs

Frame ALUXX SL-Grade Aluminum
Fork Advanced-Grade Composite, composite OverDrive steerer
Rims Giant S-X2 Disc wheelset
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tires Giant Gavia Fondo AR, tubeless, 700x40c
Bottom Bracket threaded
Crankset forged alloy, 32/48 XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 172.5mm
Shifters Shimano Sora, 2x9
Front Derailleur Shimano Sora
Rear Derailleur Shimano Sora
Cassette/Freewheel Shimano CS-HG201, 11x34
Chain KMC X9 with Missing Link
Brakes Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Tektro HD-R280
Handlebars Giant Sport, mini-rise, 31.8 XS:64cm, S:64cm, M:68cm, M/, L:68cm, XL:68cm
Tape/Grips Giant ErgoContact
Stem Giant Sports XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
Seatpost Giant D-Fuse, alloy, 350mm
Saddle Giant ErgoContact
Pedals platform pedal

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Black / Large 04712878822948 2300163127 210000010958
