Canfield Nimble 9 - Frameset

Canfield Nimble 9 - Frameset
  • Size: Medium
  • Size: Large
  • Size: Large
  • Size: X-Large
  • Size: X-Large
$999.00
Color: Bug Zapper Blue
Size: Select size
Please select options Unavailable

Details

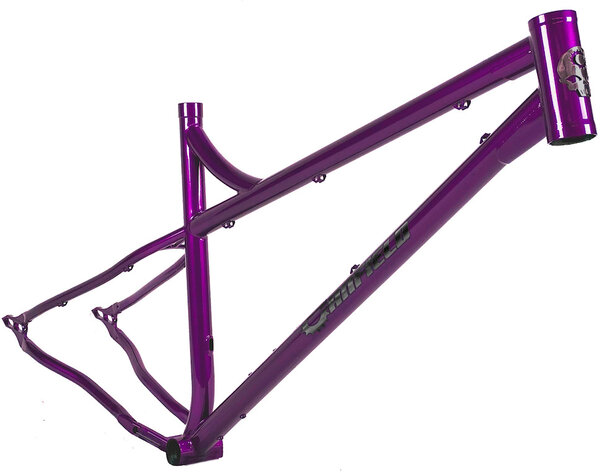

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.

FRAME FEATURES
29 inch All Mountain
4130 chromoly steel
Radial-bent seat stays for vertical compliance
Increased reach and shorter seat tube
66° head angle (w/ 150mm fork)
Recommended fork length: 140mm - 160mm
Custom sliding Boost 148mm x 12mm rear dropouts, axle included
73mm BSA Threaded BB
30.9mm seat post
34.9 or 35mm clamp size
Adjustable 16.33“ – 16.93” chainstays
Brake mount: IS 160mm
Singlespeed-able
Stealth cable routing
Two water bottle bosses
Includes dropouts/derailleur hanger, rear axle and hardware
Max. chainring size: 34t round / 32t oval
Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
